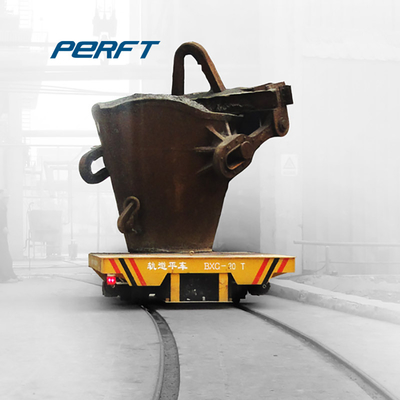

Galvanized Steel Hot Ladle and Coil Rail Transfer Cart Material Transportation Automated Guided Vehicle Suppliers
Model | BXC-2t | BXC-5t | BXC-10t | BXC-20t | BXC-30t | BXC-50t | BXC-80t | BXC-100t | BXC-150t | |
Rated Load(t) | 2 | 5 | 10 | 20 | 30 | 50 | 80 | 100 | 150 | |
Table Size(mm) | Length( L) | 2000 | 3500 | 3600 | 4000 | 4500 | 5500 | 6000 | 6500 | 10000 |
| Width( W) | 1500 | 2000 | 2000 | 2200 | 2200 | 2500 | 2600 | 2800 | 3000 |
| Heigth( H) | 450 | 500 | 500 | 550 | 600 | 650 | 800 | 900 | 1200 |
Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 4200 | 4700 | 4900 | 7000 | |
Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
Wheel Diameter(mm) | 270 | 300 | 300 | 350 | 400 | 500 | 600 | 600 | 600 | |
Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
Motor Power(Kw) | 1 | 1.2 | 1.6 | 2.2 | 3.5 | 5 | 8 | 10 | 15 | |
Battery Capacity(Ah) | 180 | 180 | 160 | 180 | 250 | 330 | 400 | 440 | 600 | |
Battery Voltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P43 | P50 | QU100 | QU100 | |
